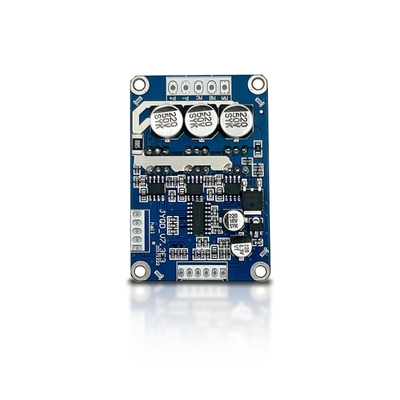

JYQD-V7.3E3 BLDC Motor Driver 12-36VDC 500W PWM Control

Adedi:	1
fiyat:	$7.90-9.90

Ayrıntılar Bilgi

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri

Jiangsu, Çin

Marka adı

Bextremeshell

Model numarası

JYQD-V7.3E3

Giriş voltajı:

12-36Vdc

Nominal Güç:

Maksimum güç:

Maksimum akım:

Kontrol algoritması:

Kare dalgası

Boyutlar:

63mm x 42.5mm x 20mm

Hız kontrolü:

PWM/0-5V

Hız Geri Bildirimi:

Çalışma sıcaklığı:

-10 ℃ ila 60 ℃

PWM frekansı:

1k-20khz

PWM görev döngüsü:

% 0-100

PWM genliği:

Kontrol bağlantı noktası mesafesi:

2.54 mm

Güç bağlantı noktası mesafesi:

3,96 mm

Motorlu tip:

Salon sensörü motoru

Vurgulamak:

BLDC motor driver 500W PWM

BLDC driver board 12-36VDC

motor driver with PWM control

Ürün Tanımı

JYQD-V7.3E3 BLDC Motor Driver

12-36VDC input, max 500W power, with PWM control, Arduino compatible

Product Specifications

Attribute	Value
Accessory Type	Motor driver
Usage	Motor
Compatible Products	BLDC motor

Key Features

Model No.: JYQD-V7.3E3
Power Input: 12-36VDC
Rated Power: 350W
Max Power: 500W
Max Current: 15A
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Control Algorithms: Square wave
Dimensions: 63mm × 42.5mm × 20mm
Speed Control: PWM/0-5V
Speed Feedback: Signal output available
Operating Temperature: -10℃ to 60℃

Applications

The JYQD-V7.3E3 BLDC motor driver board is designed for precise speed regulation of DC brushless motors from 0 to 100%. Its square wave control algorithm ensures stability and accuracy for various applications:

Common Uses:

Electric skateboards and scooters
Electric wheelchairs and hoverboards
Drones and RC vehicles
Electric unicycles and mopeds
Industrial robots and automation equipment
CNC machines and conveyor systems
Self-propelled lawn mowers
Consumer electronics and home appliances

Product Images

Installation Guidelines

Ensure motor voltage and power parameters are within specified range
Compatible with 120° Hall brushless DC motors (may require Hall line sequence adjustment)
No heatsink required for motors below 100W (ensure proper ventilation)
5V output port is for speed adjustment only - do not connect external power equipment

Wiring Diagram

Connection Details:

Control Ports: 5V, Z/F (direction), VR (speed), EL (enable), Signal (feedback), GND
Power Ports: MA, MB, MC (motor phases), P+, P- (DC power)
Hall Sensor Ports: Ha, Hb, Hc, GND, 5V
Use shielded wires for distances over 50cm between driver and motor
Control port pitch: 2.54mm; Power port pitch: 3.96mm
Ensure proper insulation between driver MOSFET and heatsink/installation plate

Dimensions

Manufacturing Process

Packaging

Each BLDC motor driver is securely packed in an individual anti-static bag.

Frequently Asked Questions

Lead Time: Samples in 5 days; Mass orders in 2-3 weeks
MOQ: 1 set for all series products
Warranty: 12 months from delivery date
Technical Support: Dedicated 1-on-1 service available
